Getting Started With Atrium - MX Documentation

In this guide, you’ll find lots of information to help you get up and running with Atrium. It includes material on about how the API works, common terminology, common problem scenarios, a Postman collection and downloadable examples in multiple languages, steps on how to test certain Atrium features, broad workflows for common tasks, and more. This is not designed to be comprehensive but to provide a broad overview of common tasks and issues. Refer to our detailed API reference for more specific information about Atrium resources, endpoints, and configuration options.

Whitelisting

Before you can work within Atrium’s production environment, your IP addresses must be whitelisted. If you haven’t been whitelisted, you’ll see 403 Forbidden errors. You can whitelist IP addresses on your account profile. Atrium’s vestibule environment does not require any whitelisting.

Resource Structure

Atrium is structured around five major resources, each with its own attributes and endpoints:

Resource	Description
`institution`	An `institution` represents a financial institution (FI) like Chase or Wells Fargo. It’s important to point out that many real-world FI will actually have several different `institution` objects within Atrium. This is because, for example, the mortgage division of Wells Fargo might use a separate system than its everyday banking division, which is different from its credit card division, etc.
`user`	A `user` represents a person using Atrium via your application, be it a mobile app, web app, desktop app, etc.
`member`	A `member` represents the relationship between a `user` and an `institution`. A `user` may have one `member` each for their bank, their mortgage broker, their credit card provider, etc. Aggregation takes place via members.
`account`	An `account` represents a financial account held by an FI, e.g., a user’s checking or savings account. A member may have more than one account associated with it. For instance, a user may have both a checking and savings account associated with one Chase login and therefore would have two accounts associated with one `member`.
`transaction`	A `transaction` represents any instance in which money moves into or out of an `account`, such as a purchase at a business, a payroll deposit, a transfer from one account to another, an ATM withdrawal, etc. Each `transaction` belongs to only one `account`.

Creating Users

To create a new user, call the create user endpoint. It’s a good idea to send along a unique identifier with your request to create a new user. Atrium will also give each new user a unique GUID in the guid field within the user object. The Atrium user GUID also appears in the user_guid field when not inside the user object. The identifier and guid allow you to easily map between your system and Atrium. You may also include metadata, such as the date the user was created, if desired. You can read more on identifiers and metadata on our API reference page. An example request for creating a user is shown below. Endpoint: POST /users

curl -i -X POST 'https://vestibule.mx.com/users' \
  -H 'Accept: application/vnd.mx.atrium.v1+json' \
  -H 'Content-Type: application/json' \
  -H 'MX-API-Key: {mx_api_key}' \
  -H 'MX-Client-ID: {mx_client_id}' \
  -d '{
        "user": {
          "identifier": "unique_id",
          "metadata": "{\"first_name\": \"Steven\"}"
        }
      }'

{
  "user": {
    "guid": "USR-fa7537f3-48aa-a683-a02a-b18940482f54",
    "identifier": "unique_id",
    "is_disabled": false,
    "metadata": "{\"first_name\": \"Steven\"}"
  }
}

Creating Members

Once a user is created, we recommend creating a member with our MX Connect widget. MX Connect allows end users to easily choose an institution to connect to, enter credentials, update credentials, and answer multi-factor authentication. If your system or application is unable to support MX Connect, you can always call the endpoint directly in your code. To create a member via endpoints, you’ll follow the workflow below:

Once your member has been created, you’ll want to call the read member status endpoint to determine whether answering MFA is required or to update credentials as needed. The steps outlined below assume you’re creating a new member on an existing user.

1. Search for an institution

Endpoint: GET /institutions

curl -i 'https://vestibule.mx.com/institutions?name=mx' \
  -H 'Accept: application/vnd.mx.atrium.v1+json' \
  -H 'MX-API-Key: {mx_api_key}' \
  -H 'MX-Client-ID: {mx_client_id}'

{
  "institutions": [
    {
      "code": "mxbank",
      "medium_logo_url": "https://content.moneydesktop.com/storage/MD_Assets/Ipad%20Logos/100x100/INS-1572a04c-912b-59bf-5841-332c7dfafaef_100x100.png",
      "name": "MX Bank",
      "small_logo_url": "https://content.moneydesktop.com/storage/MD_Assets/Ipad%20Logos/50x50/INS-1572a04c-912b-59bf-5841-332c7dfafaef_50x50.png",
      "supports_account_identification": true,
      "supports_account_statement": false,
      "supports_account_verification": true,
      "supports_oauth": false,
      "supports_transaction_history": true,
      "url": "https://www.mx.com"
    }
  ],
  "pagination": {
    "current_page": 1,
    "per_page": 25,
    "total_entries": 1,
    "total_pages": 1
  }
}

2. Get institution required credentials

Endpoint GET /institutions/{institution_code}

curl -i 'https://vestibule.mx.com/institutions/mxbank' \
  -H 'Accept: application/vnd.mx.atrium.v1+json' \
  -H 'MX-API-Key: {mx_api_key}' \
  -H 'MX-Client-ID: {mx_client_id}'

{
  "institution": {
    "code": "mxbank",
    "medium_logo_url": "https://content.moneydesktop.com/storage/MD_Assets/Ipad%20Logos/100x100/INS-1572a04c-912b-59bf-5841-332c7dfafaef_100x100.png",
    "name": "MX Bank",
    "small_logo_url": "https://content.moneydesktop.com/storage/MD_Assets/Ipad%20Logos/50x50/INS-1572a04c-912b-59bf-5841-332c7dfafaef_50x50.png",
    "supports_account_identification": true,
    "supports_account_statement": false,
    "supports_account_verification": true,
    "supports_oauth": false,
    "supports_transaction_history": true,
    "url": "https://www.mx.com"
  }
}

3. Create a member

Endpoint: POST /users/{user_guid}/members

curl -i -X POST 'https://vestibule.mx.com/users/{user_guid}/members' \
  -H 'Accept: application/vnd.mx.atrium.v1+json' \
  -H 'Content-Type: application/json' \
  -H 'MX-API-Key: {mx_api_key}' \
  -H 'MX-Client-ID: {mx_client_id}' \
  -d '{
        "member": {
          "institution_code": "mxbank",
          "credentials": [
            {
              "guid": "CRD-1ec152cd-e628-e81a-e852-d1e7104624da",
              "value": "ExampleUsername"
            },
            {
              "guid": "CRD-1ec152cd-e628-e81a-e852-d1e7104624da",
              "value": "Pa$$vv@Rd"
            }
          ],
          "skip_aggregation": true
        }
      }'

{
  "member": {
    "aggregated_at": "2016-10-13T17:57:36+00:00",
    "connection_status": "CONNECTED",
    "guid": "MBR-7c6f361b-e582-15b6-60c0-358f12466b4b",
    "identifier": "unique_id",
    "institution_code": "mxbank",
    "is_being_aggregated": true,
    "metadata": "{\"credentials_last_refreshed_at\": \"2015-10-15\"}",
    "name": "MX Bank",
    "status": "INITIATED",
    "successfully_aggregated_at": null,
    "user_guid": "USR-fa7537f3-48aa-a683-a02a-b18940482f54"
  }
}

4. Poll the member status

Endpoint: GET /users/{user_guid}/members/{member_guid}/status

curl -i 'https://vestibule.mx.com/users/{user_guid}/members/{member_guid}/status' \
  -H 'Accept: application/vnd.mx.atrium.v1+json' \
  -H 'MX-API-Key: {mx_api_key}' \
  -H 'MX-Client-ID: {mx_client_id}'

{
  "member": {
    "aggregated_at": "2019-06-08T17:21:05Z",
    "connection_status": "CONNECTED",
    "guid": "MBR-a4652b66-3ee5-cb9f-295a-72eddef61db5",
    "has_processed_accounts": true,
    "has_processed_transactions": true,
    "is_authenticated": true,
    "is_being_aggregated": false,
    "status": "COMPLETED",
    "successfully_aggregated_at": "2019-06-07T21:16:03Z"
  }
}

Aggregating Data and Dealing with MFA

Aggregating data about accounts and transactions belonging to a member is a multi-step process. This same general outline applies to all aggregation-type features, with the necessary endpoint substitutions, of course: account verification, identity verification, extended transaction histories, fetching statements, account balance aggregation, and standard aggregation. In general, it involves:

Making a request to the aggregate member endpoint (or an analogous endpoint);
Polling the member for changes in the state of the aggregation using the _read member connection status endpoint and looking at fields such as connection_status, is_being_aggregated, is_authenticated, has_processed_accounts, etc.;
- Using the Connect Widget provided by MX greatly simplifies and automates steps 2 and 3;
If necessary, answering MFA challenges using the resume aggregation endpoint.
Reading aggregated data using the list accounts and _list transactions endpoints (or analogous endpoints).

Atrium automatically aggregates each member every 24 hours. This process is called background aggregation. It ensures that end users’ data will always be up to date. If an end user is present, you may also manually run a foreground aggregation using the general steps specified above. End users must be present during foreground aggregations because they may run into MFA, credential update requests, terms and conditions agreements, or any number of other situations requiring end-user input. Both foreground and background aggregation may be manually prevented by disabling a user. A user must be re-enabled before any aggregation can be attempted. Atrium may also suspend background aggregation on a particular member in some circumstances, such as when several consecutive aggregation attempts fail. However, you may always attempt a foreground aggregation on a suspended member.

Running Multiple Aggregation-Type Events on a Member

Your particular application may use several of Atrium’s aggregation-type processes, including standard aggregation and premium features like fetching statements, verifying identity, etc. All of these processes are run on a specific member, but they cannot be run simultaneously — each process must reach an end state before a new process can be started. Furthermore, when running multiple processes in succession, standard aggregation should always be performed first in the series. This is because any aggregation-type process will prevent a new standard aggregation for the next three hours; however, running a standard aggregation has no effect on the timing of premium features. If a member already has a process running and you attempt to run an aggregation-type process on it, you may get one of two status codes:

If an event of the same type is already running, you’ll get a 202 Accepted status;

For example, you called verify member when a verification is already running;
You can tell that a process is already running because the is_being_aggregated field will be true.

If an event of a different type is running, you’ll get a 409 Conflict status;

For example, you called identify member when a standard aggregation is already running.

MFA And Connection Statuses

Some institutions require multiple steps for authentication; this process is called multi-factor authentication (MFA). Basically, it is a back and forth dialogue between the end user, the partner’s application, and the institution. After the initial credentials are provided, the institution can either grant access or present an MFA challenge.

INFOMFA is controlled by the institution’s security settings and not by MX. MFA can be encountered at each step in the aggregation process.

When an MFA challenge is presented, the member’s connection_status will be CHALLENGED. You must get the correct answer to the challenge from the end user and send it to MX so aggregation can continue. More than one MFA cycle may occur. Financial institutions will typically have multiple MFA questions and may ask a new question in future aggregations. Partners must continue to answer the institution’s challenges until the institution grants access to the end user’s account. A single aggregation may also enter multiple CHALLENGED states. A typical scenario for this is when a list of options is presented along with a question such as, “Where should we send an authentication token?” MFA can occur at any time on any aggregation, so even if authentication has been successful in the past, the institution may require an end user to authenticate again. Furthermore, aggregation may trigger MFA even if end users can successfully log into their online banking portal without MFA using the same credentials.

Member Connection Statuses

The connection_status field appears on all member resources and indicates the current state of aggregation for that particular member. Partners can poll a particular member using the read member connection status endpoint to follow changes in the connection_status throughout an aggregation. The connection_status should be used in conjunction with several other member fields to determine future actions, including aggregated_at, is_being_aggregated, and successfully_aggregated_at, has_processed_accounts and has_processed_transactions. Definitions for these fields appear at the end of this section. Definitions for all member fields are available here. For example, when the connection_status is CONNECTED and the is_being_aggregated field is false, this means the latest aggregation attempt has finished and data for accounts and transactions should be pulled. Partners can use the field successfully_aggregated_at to determine when the last successful aggregation occurred. When the status is CHALLENGED, an MFA challenge has been issued, requiring a separate workflow and user input. The statuses CREATED, UPDATED, DELAYED, and RESUMED represent transient states for different points in the aggregation process and generally do not require a specific action or end-user input. They may, however, require continued polling until an end state is reached. The statuses PREVENTED, DENIED, IMPEDED, IMPAIRED, REJECTED, EXPIRED, LOCKED, IMPORTED, DISABLED, DISCONTINUED, and CLOSED, represent end states that will require a new aggregation, and possibly end-user input for future success. Member fields to poll during aggregation

Field Name	Data Type	Description
`aggregated_at`	String	The date and time the `member` the last aggregation was initiated.
`connection_status`	String	This field indicates the state of a member’s aggregation, provided as a string. See member connection statuses for more information on possible values.
`is_being_aggregated`	Boolean	This field will be true if the member is being aggregated at the time of the request. Otherwise, this field will be false.
`successfully_aggregated_at`	String	The date and time the account was last successfully aggregated.

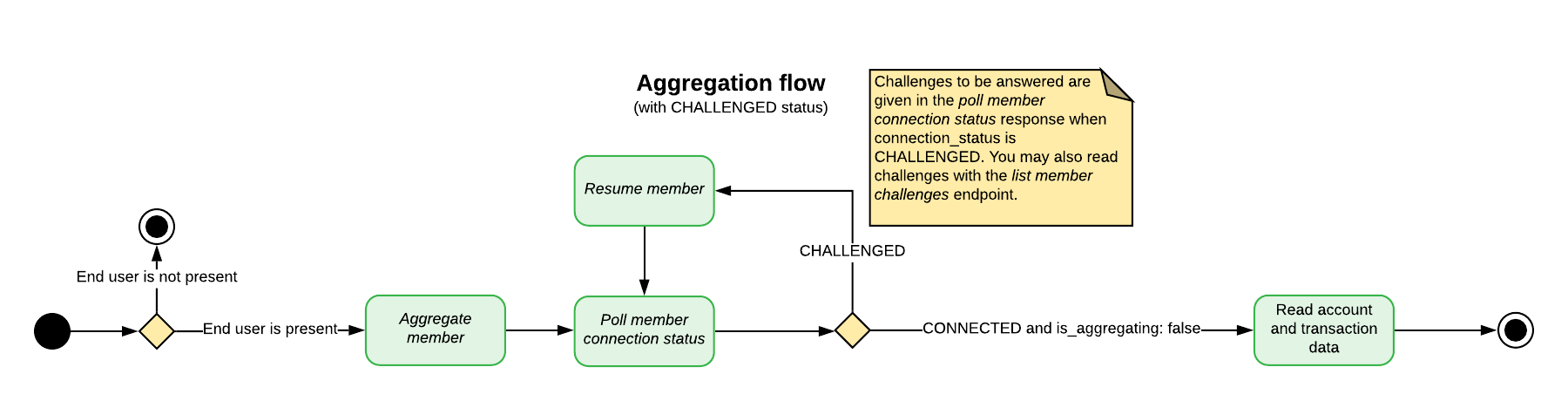

Dealing with a `CHALLENGED` Status

When a member comes back with a status of CHALLENGED, the aggregation will require answers to MFA from the end user. The challenges that must be answered are returned in the read member connection status response, nested inside the challenges array, as shown to the right. Simply polling this endpoint for changes in the connection_status should return challenges as quickly as possible. Once MFA answers have been gathered for the challenged member, a request to the resume aggregation endpoint will send these answers and automatically resume the aggregation process. Aggregation will run until it either completes in an end state or enters into a state that requires action. It is not uncommon for an aggregation to be CHALLENGED more than once. Example response for read member connection status when the connection_status is CHALLENGED

JSON

{
  "member": {
    "aggregated_at":"2016-10-13T18:24:37+00:00",
    "challenges": [
      {
        "field_name": null,
        "guid": "CRD-1ec152cd-e628-e81a-e852-d1e7104624da",
        "label": "What city were you born in?",
        "type": "TEXT"
      }
    ],
    "connection_status": "CHALLENGED",
    "guid": "MBR-7c6f361b-e582-15b6-60c0-358f12466b4b",
    "has_processed_accounts": false,
    "has_processed_transactions": false,
    "is_being_aggregated": true,
    "status": "CHALLENGED",
    "successfully_aggregated_at": "2016-10-13T18:08:04+00:00"
  }
}

Dealing with Multiple `CHALLENGED` States in One Aggregation

A single aggregation may enter multiple CHALLENGED states. A typical scenario for this is when a list of options is presented along with a question such as, “Where should we send an authentication token?” As above, polling the read member connection status endpoint after resuming an aggregation should return these further challenges. Here is a typical example: MFA is triggered and asks where to send an access token. The end user should be prompted for the answer and that answer provided to MX through the resume aggregation endpoint. The connection_status will move to a RESUMED state, but then will go back into a CHALLENGED state. This time, the end user should be prompted to enter the access token. If the second MFA challenge is answered successfully, the aggregation will typically proceed to an end state such as CONNECTED.

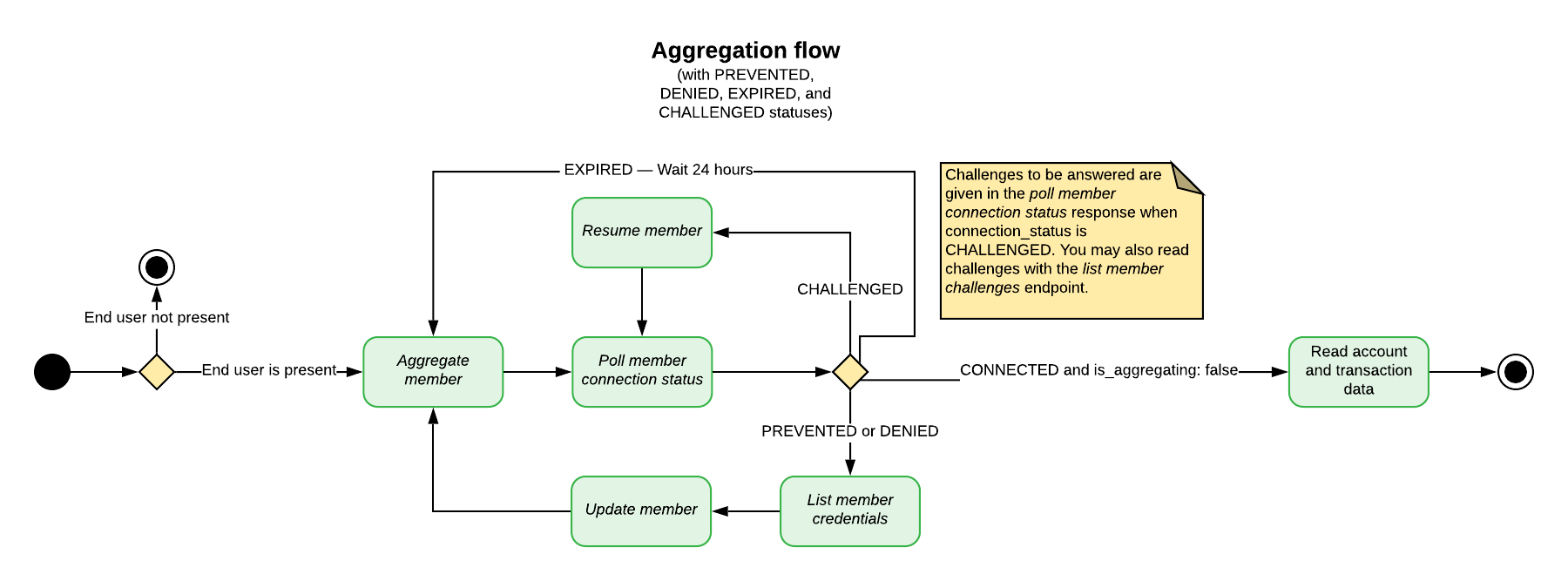

Dealing with a `DENIED` or `PREVENTED` Status

If a member has a PREVENTED or a DENIED status, it means the authentication credentials are invalid; the end user must provide new credentials, and the member must be updated. A request to the list member credentials endpoint (as distinct from the separate list institution credentials endpoint) will return a list of the authentication credentials required for that member; corresponding input should be gathered from the end user, and that input should be passed to the update member endpoint.

Step-by-Step Guide for Standard Aggregation with MFA

The steps below show the ideal path for a standard aggregation on an existing member, including MFA. It’s the happy path, so to speak. There are other flows and situations, to be sure, but this gives you the basic outline of a common situation that requires resolution.

1. Check the member’s connection status

The first step is to check the member’s connection_status to determine whether aggregation is either necessary or possible. Each status indicates something different; some connection statuses mean that an aggregation will fail if attempted or that an aggregation is already in progress. See the sections above for more information, or consult the documentation on connection statuses for full details on exactly what each status means. The following lists represent general guidelines.

INFOThe connection_status field is not the same as status. The status field should no longer be relied on for aggregation purposes.

In general, aggregation can be attempted for a member with the following connection statuses:

CREATED
CONNECTED
DEGRADED
DISCONNECTED
EXPIRED
FAILED
IMPEDED
RECONNECTED
UPDATED

In general, you must update credentials before aggregating a member with the following connection statuses:

PREVENTED
DENIED
IMPAIRED
IMPORTED

The following connection statuses represent a transitory state in an ongoing aggregation process:

CHALLENGED
DELAYED
REJECTED
RESUMED

You should not attempt aggregation on a member with the following connection statuses:

CLOSED
DISABLED
DISCONTINUED

Endpoint: GET /users/{user_guid}/members/{member_guid}/status

curl -i 'https://vestibule.mx.com/users/{user_guid}/members/{member_guid}/status' \
  -H 'Accept: application/vnd.mx.atrium.v1+json' \
  -H 'MX-API-Key: {mx_api_key}' \
  -H 'MX-Client-ID: {mx_client_id}'

{
  "member": {
    "aggregated_at": "2019-06-08T17:21:05Z",
    "connection_status": "CONNECTED",
    "guid": "MBR-a4652b66-3ee5-cb9f-295a-72eddef61db5",
    "has_processed_accounts": true,
    "has_processed_transactions": true,
    "is_authenticated": true,
    "is_being_aggregated": false,
    "status": "COMPLETED",
    "successfully_aggregated_at": "2019-06-07T21:16:03Z"
  }
}

2. Aggregate the member

Making a POST request to the aggregate member endpoint initiates an aggregation. Endpoint: POST /users/{user_guid}/members/{member_guid}/aggregate

curl -i -X POST 'https://vestibule.mx.com/users/{user_guid}/members/{member_guid}/aggregate' \
  -H 'Accept: application/vnd.mx.atrium.v1+json' \
  -H 'Content-Type: application/json' \
  -H 'MX-API-Key: {mx_api_key}' \
  -H 'MX-Client-ID: {mx_client_id}'

{
  "member": {
    "aggregated_at": "2016-10-13T18:07:57+00:00",
    "connection_status": "CONNECTED",
    "guid": "MBR-7c6f361b-e582-15b6-60c0-358f12466b4b",
    "identifier": "unique_id",
    "institution_code": "mxbank",
    "is_being_aggregated": true,
    "metadata": "{\"credentials_last_refreshed_at\": \"2015-10-15\"}",
    "name": "MX Bank",
    "status": "INITIATED",
    "successfully_aggregated_at": "2016-10-13T17:57:38+00:00",
    "user_guid": "USR-fa7537f3-48aa-a683-a02a-b18940482f54"
  }
}

3. Check the connection status again

In this example, we see that the status has returned as CHALLENGED, meaning the aggregation has run into MFA. When CHALLENGED, the response to your status request will include a challenges object containing the MFA that the end user must answer. Endpoint: GET /users/{user_guid}/members/{member_guid}/status

curl -i 'https://vestibule.mx.com/users/{user_guid}/members/{member_guid}/status' \
  -H 'Accept: application/vnd.mx.atrium.v1+json' \
  -H 'MX-API-Key: {mx_api_key}' \
  -H 'MX-Client-ID: {mx_client_id}'

{
  "member": {
    "aggregated_at": "2019-06-08T17:21:05Z",
    "connection_status": "CONNECTED",
    "guid": "MBR-a4652b66-3ee5-cb9f-295a-72eddef61db5",
    "has_processed_accounts": true,
    "has_processed_transactions": true,
    "is_authenticated": true,
    "is_being_aggregated": false,
    "status": "COMPLETED",
    "successfully_aggregated_at": "2019-06-07T21:16:03Z"
  }
}

4. Answer MFA with the resume aggregation endpoint

Endpoint: PUT /users/{user_guid}/members/{member_guid}/resume

curl -i -X PUT 'https://vestibule.mx.com/users/{user_guid}/members/{member_guid}/resume' \
  -H 'Accept: application/vnd.mx.atrium.v1+json' \
  -H 'Content-Type: application/json' \
  -H 'MX-API-Key: {mx_api_key}' \
  -H 'MX-Client-ID: {mx_client_id}' \
  -d '{
        "member":{
          "challenges":[
            {
               "guid": "institution-credential-guid",
               "value": "user-entered-value"
            },
            {
              "guid": "institution-credential-guid",
               "value": "user-entered-value"
            }
          ]
        }
      }'

{
  "member": {
    "aggregated_at": "2016-09-30T14:31:45-06:00",
    "connection_status": "RESUMED",
    "guid": "MBR-7c6f361b-e582-15b6-60c0-358f12466b4b",
    "identifier":"unique_id",
    "institution_code": "mxbank",
    "is_being_aggregated": true,
    "metadata": "{\"credentials_last_refreshed_at\": \"2015-10-15\"}",
    "name": "MX Bank",
    "status": "RECEIVED",
    "successfully_aggregated_at": null,
    "user_guid": "USR-fa7537f3-48aa-a683-a02a-b18940482f54"
  }
}

5. Check the connection status again

Check the connection_status again, and keep checking until the aggregation reaches an end state, e.g., the is_being_aggregated field is false. Endpoint: GET /users/{user_guid}/members/{member_guid}/status

curl -i 'https://vestibule.mx.com/users/{user_guid}/members/{member_guid}/status' \
  -H 'Accept: application/vnd.mx.atrium.v1+json' \
  -H 'MX-API-Key: {mx_api_key}' \
  -H 'MX-Client-ID: {mx_client_id}'

{
  "member": {
    "aggregated_at": "2019-06-08T17:21:05Z",
    "connection_status": "CONNECTED",
    "guid": "MBR-a4652b66-3ee5-cb9f-295a-72eddef61db5",
    "has_processed_accounts": true,
    "has_processed_transactions": true,
    "is_authenticated": true,
    "is_being_aggregated": false,
    "status": "COMPLETED",
    "successfully_aggregated_at": "2019-06-07T21:16:03Z"
  }
}

Steps for Multiple-Question MFA

Multiple-question MFA is very similar to single-question MFA explained above.

Aggregate the member (or create a new member)
Check the member connection status.
Answer the challenge using the resume aggregation endpoint
Check the connection status again.
Answer the next challenge.
Keep checking the connection status and answering challenges until an end state is reached.

Pulling Data

When an aggregation is initiated, the member field aggregated_at will update. If it completes successfully, the successfully_aggregated_at field will be updated. These will help you determine when to pull the latest data after a foreground aggregation. Transaction data can be accessed though three different endpoints: /users/{user_guid}/transactions, /users/{user_guid}/members/{member_guid}/transactions, and /users/{user_guid}/accounts/{account_guid}/transactions. The first will list all the transactions that belong to the user object. The second will return all transactions that belong to a member object. The third will return all transactions that belong to an ‘account’ object. We recommend first listing available accounts, then listing transactions for a specific account.

Wrapper Libraries

To see example workflows, please download one of our Atrium wrapper libraries in the language of your choice.

​Whitelisting

​Resource Structure

​Creating Users

​Creating Members

​1. Search for an institution

​2. Get institution required credentials

​3. Create a member

​4. Poll the member status

​Aggregating Data and Dealing with MFA

​Running Multiple Aggregation-Type Events on a Member

​MFA And Connection Statuses

​Member Connection Statuses

​Dealing with a CHALLENGED Status

​Dealing with Multiple CHALLENGED States in One Aggregation

​Dealing with a DENIED or PREVENTED Status

​Step-by-Step Guide for Standard Aggregation with MFA

​1. Check the member’s connection status

​2. Aggregate the member

​3. Check the connection status again

​4. Answer MFA with the resume aggregation endpoint

​5. Check the connection status again

​Steps for Multiple-Question MFA

​Pulling Data

​Wrapper Libraries

Whitelisting

Resource Structure

Creating Users

Creating Members

1. Search for an institution

2. Get institution required credentials

3. Create a member

4. Poll the member status

Aggregating Data and Dealing with MFA

Running Multiple Aggregation-Type Events on a Member

MFA And Connection Statuses

Member Connection Statuses

Dealing with a `CHALLENGED` Status

Dealing with Multiple `CHALLENGED` States in One Aggregation

Dealing with a `DENIED` or `PREVENTED` Status

Step-by-Step Guide for Standard Aggregation with MFA

1. Check the member’s connection status

2. Aggregate the member

3. Check the connection status again

4. Answer MFA with the resume aggregation endpoint

5. Check the connection status again

Steps for Multiple-Question MFA

Pulling Data

Wrapper Libraries
